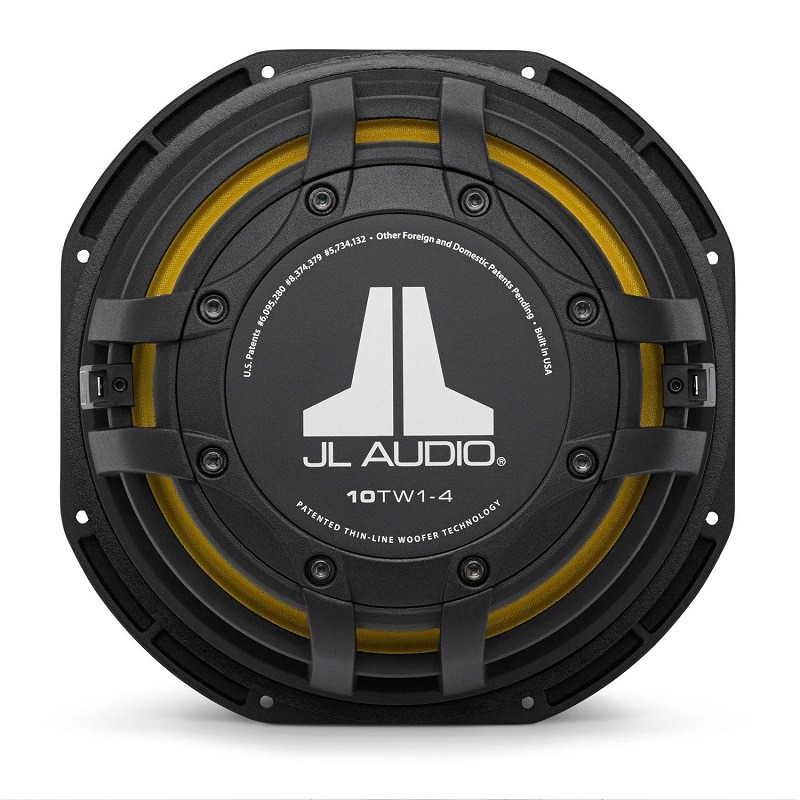

JL Audio 10TW1-4

SKU: 92186
1 i lager (kan restnoteras)

3690 kr

  • Lådvolym 9,91 / 17,7 L
  • 75 – 300 WRMS
  • 4 Ω
1 i lager (kan restnoteras)
Går att lägga på rest.

Antal på lager: 1

Lägg i favoritlista
Lägg i favoritlista

Återkommande produkt? Lägg till i din wishlist för snabbare åtkomst.

Lägg i favoritlista
Lägg i favoritlista
Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.

036-379300

EAN/UPC: 699440921862
Kategori:

Beskrivning

Designed to excel in previously impossible spaces.” – JL Audio

10″ Baselement, byggd med JL Audios patenterade ”thin-line” teknologi leverar 10TW1 en kraftfull kombination av lågt monteringsdjup och lång slaglängd samtidigt som den är optimal för små utrymmen (9.91L). Tillsammans med en speciell korg i gjuten aluminium gör att den fungerar i extremt trånga utrymmen, t.ex installationer under säten i lastbilar, 2-sitsiga bilar, och en mängd andra kreativa byggen som kräver en kompakt design med låg profil.

TW1 – Optimerad för små lådor, TW1 levererar all den rika, djupa och kontrollerade basen som du förväntar dig av en bas från JL Audio.

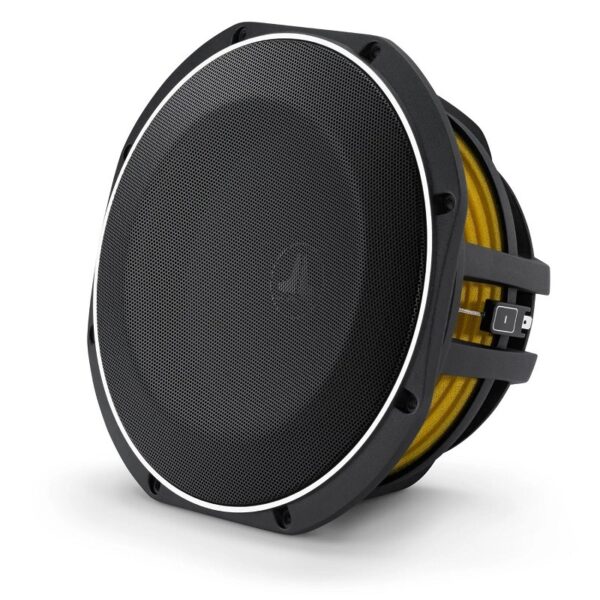

Galler ingår!

Ladda ner manual (PDF): 10TW1-4 MANUAL

Effektspecifikation

10tw14_effekt

Kontinuerlig Effekttålighet (WRMS) 300 W
Rekommenderad förstärkareffekt 75 - 300 W
Impedans 4 Ω
Fysiska Mått

10tw14_fysisk

Nominell Diameter 250 mm
Overall Diameter (A) 264 mm
Monterings Hål (B) 230 mm
Skruvhål Diameter (C) 246 mm
Magnet Yttre Diameter (D) 115 mm
Monteringsdjup (E) 111 mm
Utstick (Med Galler) (F) 22 mm
Magnet Displacement 1.33 L
Net. Vikt 4.8 kg
Parametrar
Free Air Resonance (Fs) 38.09 Hz
Electrical “Q” (Qes) 0.639
Mechanical “Q” (Qms) 10.07
Total Speaker “Q” (Qts) 0.601
Equivalent Compliance (Vas) 12.15 L
One-Way Linear Excursion (Xmax)* 10.0 mm
Reference Efficiency (no)
Efficiency (1 W / 1 m)** 82.2 dB SPL
Effective Piston Area (Sd) 0.0268 sq m
DC Resistance (Re) 3.516 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Rek. Lådvolym: Sluten Låda 9.91L

10tw14_sluten

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 9.91 L
External Width (W) 410 mm
External Height (H) 356 mm
External Depth (D) 133 mm
F3 47.24 Hz
Fc 56.83 Hz
Qtc 0.897

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6.5 mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Rek. Lådvolym: Portad Låda 17.7L

10tw14_portad

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 17.7 L
External Width (W) 676 mm
External Height (H) 406 mm
External Depth (D) 133 mm
Internal Slot Port Width (SW) 95 mm
Internal Slot Port Height (SH) 48 mm
Internal Slot Port Length (SL) 572 mm
Port Extension Length (EL) 529 mm
Tuning Frequency (Fb) 35.0 Hz
F3 30.77 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6.5 mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
