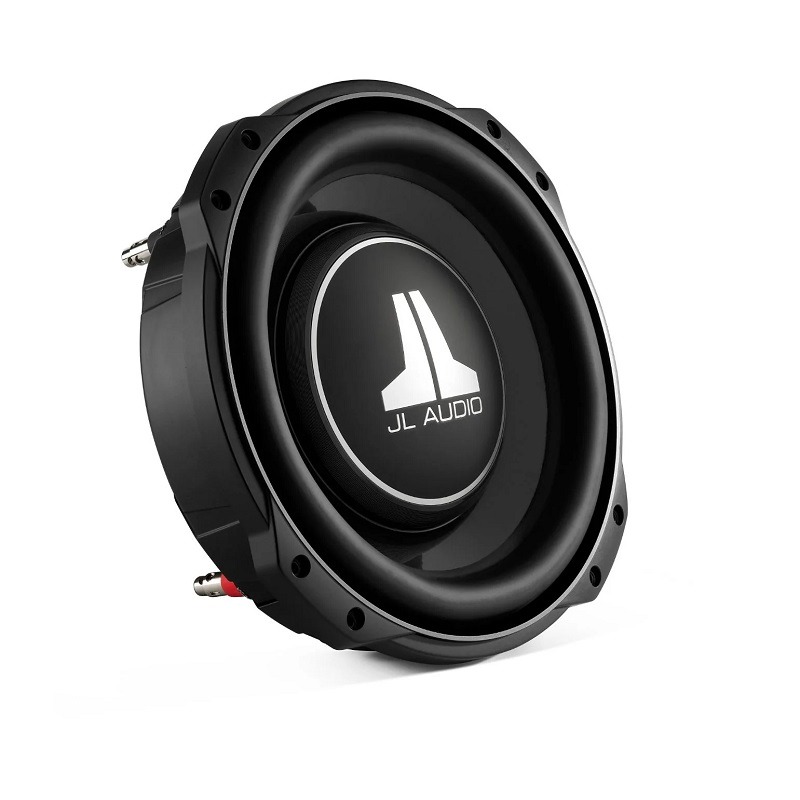

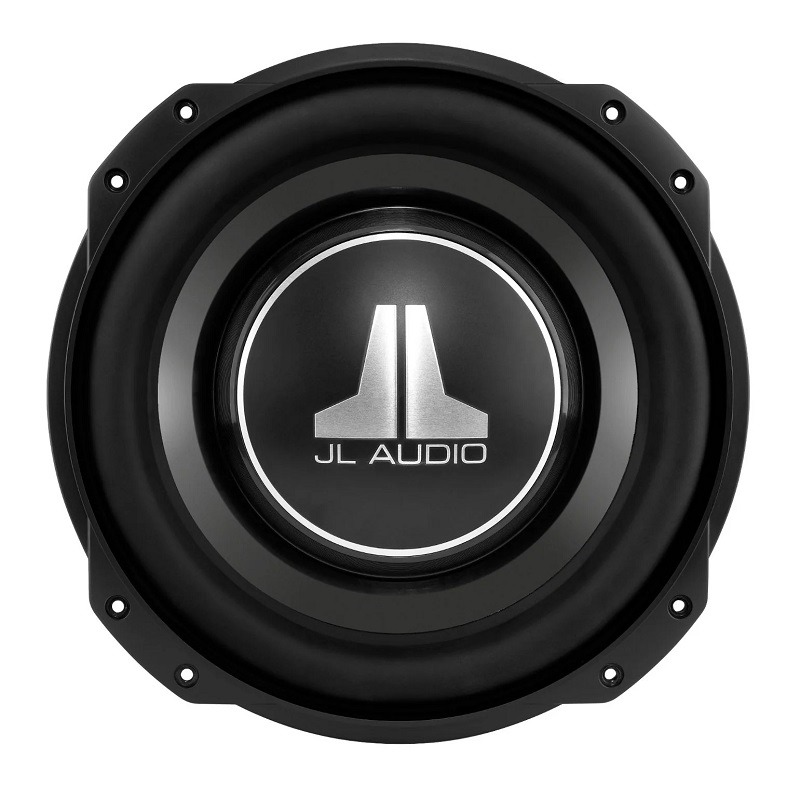

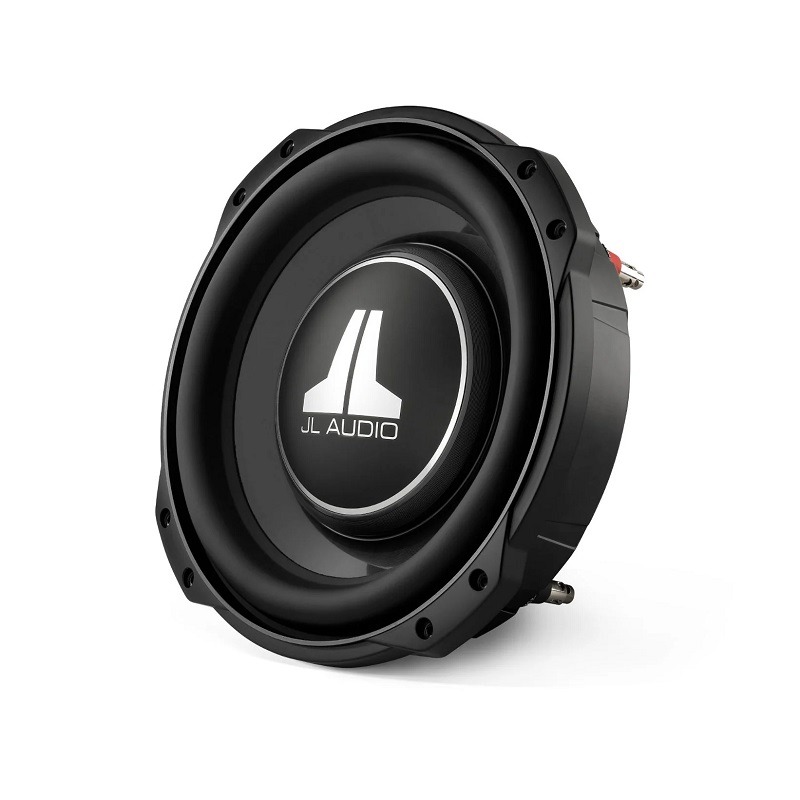

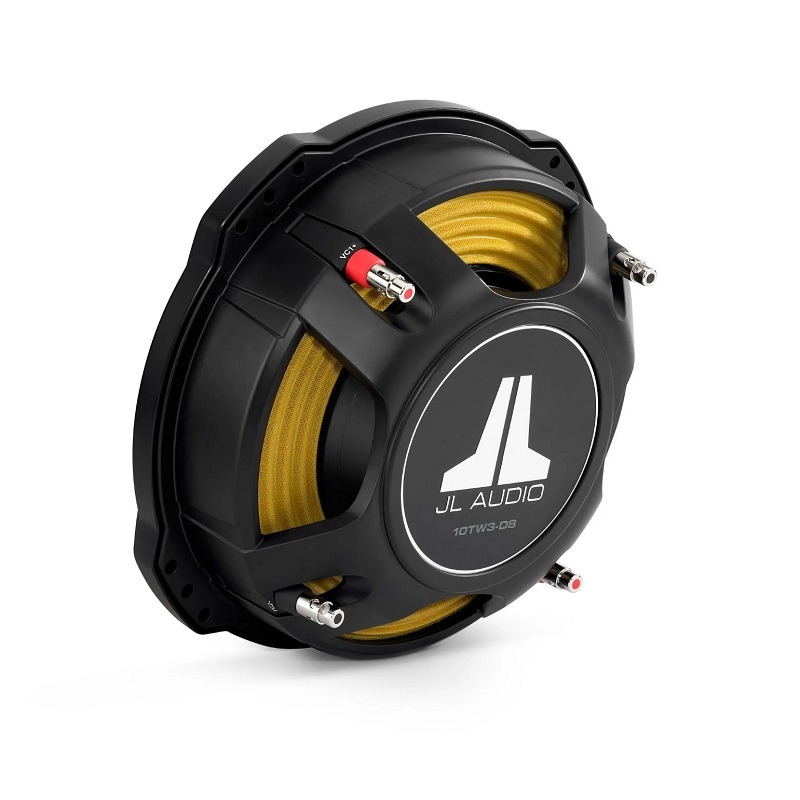

JL Audio 10TW3-D8

SKU: 92193
Kan restnoteras

4590 kr

  • Lådvolym 14.16 / 17 L
  • 200 – 400 WRMS
  • Dual 8 Ω
Kan restnoteras
Går att lägga på rest.

Antal på lager: 0

Lägg i favoritlista
Lägg i favoritlista

Återkommande produkt? Lägg till i din wishlist för snabbare åtkomst.

Lägg i favoritlista
Lägg i favoritlista
Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.

036-379300

EAN/UPC: 699440921930
Kategori:

Beskrivning

Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.” – JL Audio

Med JL Audios patenterade ”thin-line” teknologi leverar TW3 en kraftfull kombination av lågt monteringsdjup och lång slaglängd samtidigt som den är optimal för små utrymmen (14.16L). Tillsammans med en speciell korg i gjuten aluminium gör att den fungerar i extremt trånga utrymmen, t.ex installationer under säten i lastbilar, 2-sitsiga bilar, och en mängd andra kreativa byggen som kräver en kompakt design med låg profil.

TW3 – Optimerad för små lådor, TW3 levererar all den rika, djupa och kontrollerade basen som du förväntar dig av en bas från JL Audio.

Galler: Ingår ej! Går att köpa till SGR-10TW3

Ladda ner manual (PDF): 10TW3_MANUAL

Effektspecifikation

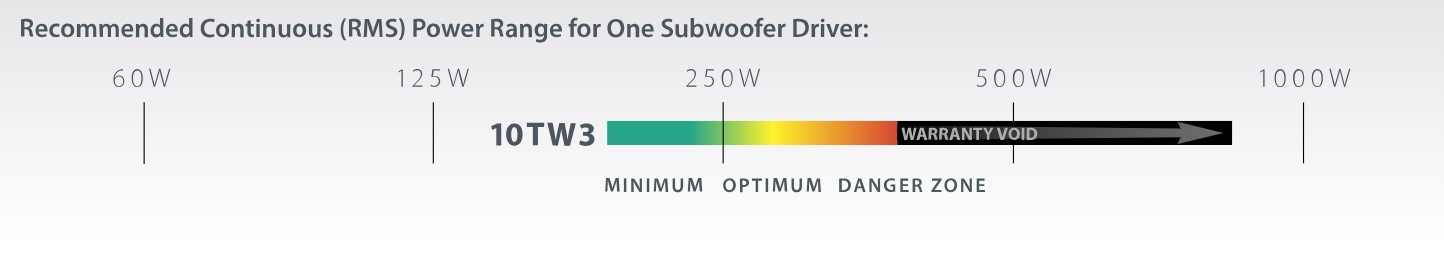

10tw3_power

Kontinuerlig Effekttålighet (WRMS) 400 W
Rekommenderad förstärkareffekt 200 - 400 W
Impedans Dubbla 8 Ω
Fysiska Mått

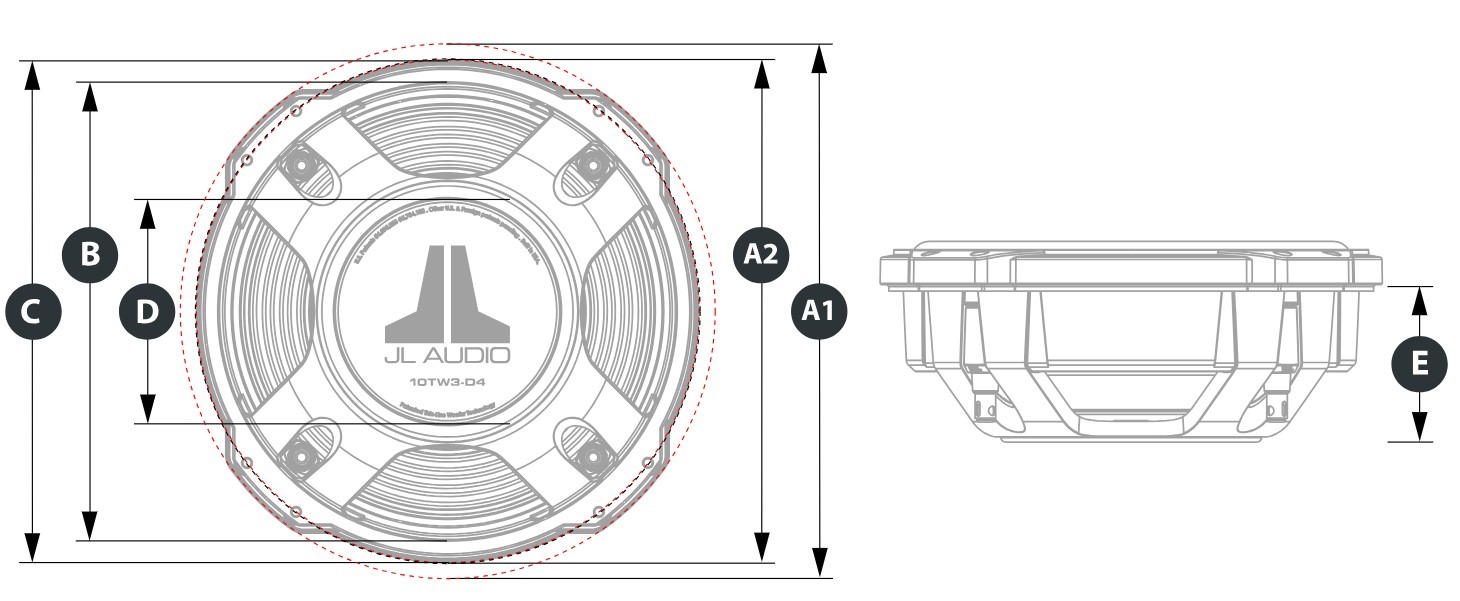

10tw3_size

Nominell Diameter 250 mm
Overall Diameter (A) A1: 284 mm
A2: 267 mm
Monterings Hål (B) 244 mm
Skruvhål Diameter (C) 267 mm
Magnet Yttre Diameter (D) 130 mm
Monteringsdjup (E) 83 mm
Magnet Displacement 0.54 L
Net. Vikt 4.6 kg
Parametrar
Free Air Resonance (Fs) 39.262 Hz
Electrical “Q” (Qes) 0.825
Mechanical “Q” (Qms) 9.84
Total Speaker “Q” (Qts) 0.761
Equivalent Compliance (Vas) 14.44 L
One-Way Linear Excursion (Xmax)* 15.2 mm
Reference Efficiency (no) 0.23%
Efficiency (1 W / 1 m)** 82.27 dB SPL
Effective Piston Area (Sd) 0.0365 sq m
DC Resistance (Re)*** 15.008 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

Rek. Lådvolym: Sluten Låda 16.3L

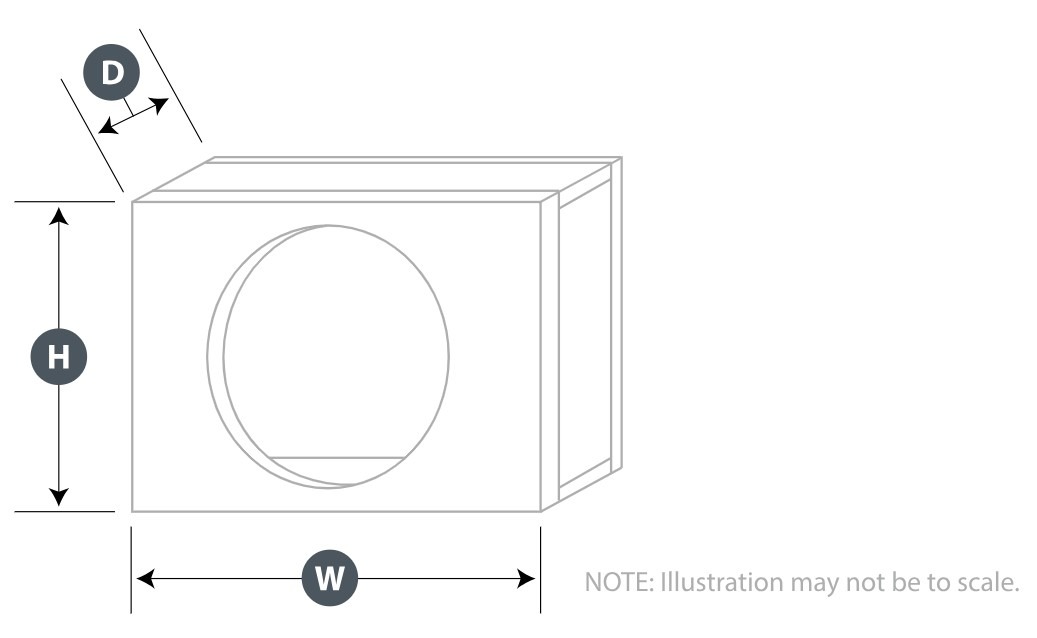

10tw3_sealed

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 16.3 L
External Width (W) 425 mm
External Height (H) 381 mm
External Depth (D) 165 mm
F3 41.61 Hz
Fc 53.93 Hz
Qtc 1.0453

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Rek. Lådvolym: Portad Låda 21.2L

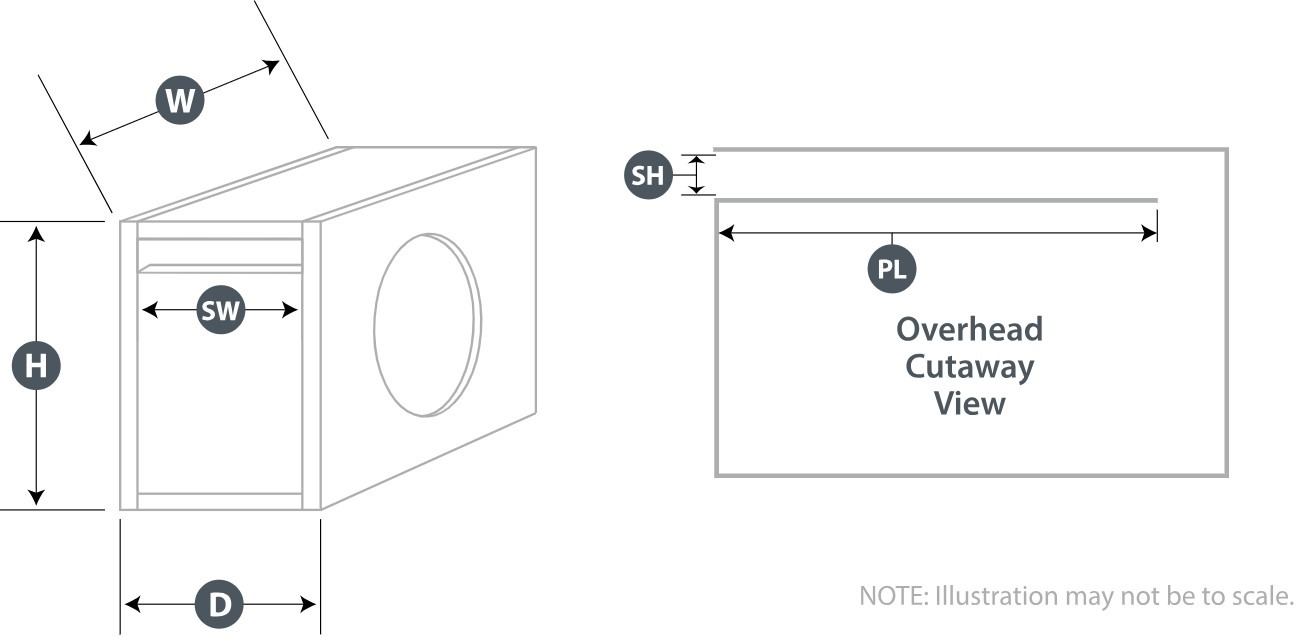

10tw3_ported

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 21.2 L
External Width (W) 762 mm
External Height (H) 416 mm
External Depth (D) 133 mm
Internal Slot Port Width (SW) 95 mm
Internal Slot Port Height (SH) 54 mm
Internal Slot Port Length (SL) 681 mm
Port Extension Length (PL) 635 mm
Tuning Frequency (Fb) 31.33 Hz
F3 29.54 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6.5 mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
