JL Audio 10W3v3-2

SKU: 92150
Kan restnoteras

3990 kr

  • Lådvolym 17.7 / 35.4 L
  • 150-500 WRMS
Kan restnoteras
Går att lägga på rest.

Antal på lager: 0

Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.

036-379300

EAN/UPC: 699440921503
RRP/EUR+VAT: 359,99
Kategori:

Beskrivning

Loaded” – JL Audio

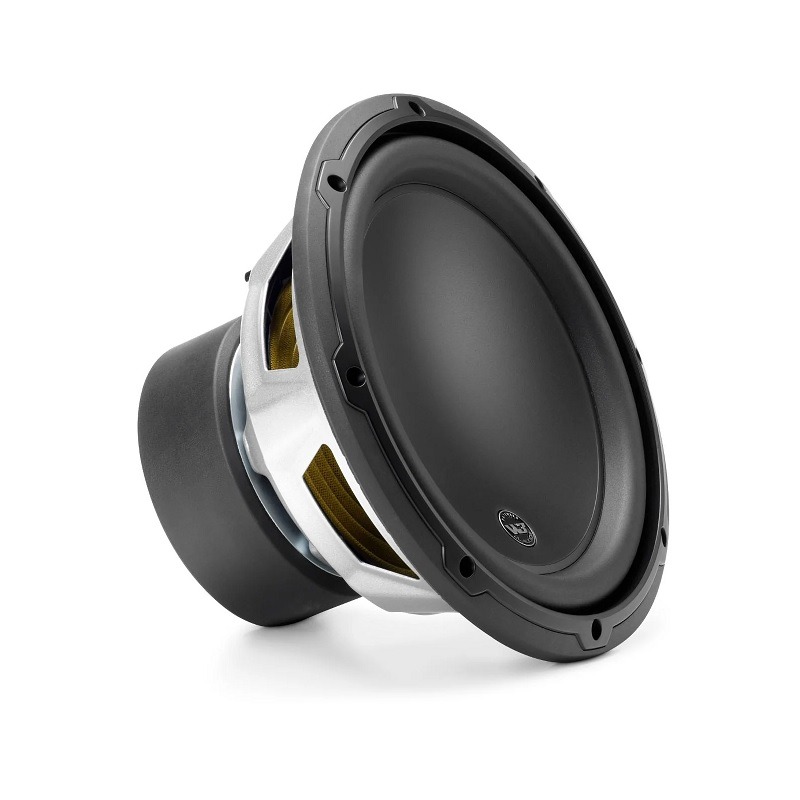

10″ baselement från JL Audio. Förvånande bra och fina djupbasegenskaper i riktigt små lådor.

10W3v3 – Med väl tilltagen effekttålighet för att få ännu bättre konkontroll. Utan att tveka gräver denna lilla bas i avgrunden och det med en kraft som får flertal större basar att låta klena!
Med en lång kontrollerad slaglängd är den designad för att passa i mycket små lådkonstruktioner.

W3 – Seriens basar använder sig av avancerad teknik som ursprungligen utvecklades för flaggskeppet W7-subwoofers. Ett DMA optimerat motorsystem tillåter långa, linjära slag, med minimal distorsion och ökad effekt.

10W3v3 – är utrustad med flertalet patenterade lösningar ”DMA Optimized”, ”Elevated Frame Cooling”, ”Engineered Lead-Wire System”, ”Insert Molded Sub-Assembly”, ”FCAM” och ”VRC”. Dessa teknologier gör W3 till de kraftfullaste och mest pålitliga generationen hittills.

Ladda ner manual (PDF)

Effektspecifikation

10w3v3_effekt

Kontinuerlig Effekttålighet (WRMS) 500 W
Rekommenderad förstärkareffekt 150 - 500 W
Impedans 2 Ω
Fysiska Mått

10w3v3_size

Nominell Diameter 250 mm
Yttre Diameter (A) 267 mm
Monterings Hål (B) 230 mm
Skruvhål Diameter (C) 246.5 mm
Magnet Ytter Diameter (D) 133 mm
Monteringsdjup (E) 151 mm
Magnet Displacement 1.39 L

Net. Vikt

5.56 kg



Parametrar
Free Air Resonance (Fs) 32.97 Hz
Electrical “Q” (Qes) 0.533
Mechanical “Q” (Qms) 7.027
Total Speaker “Q” (Qts) 0.495
Equivalent Compliance (Vas) 32.17 L
One-Way Linear Excursion (Xmax)* 14.0 mm
Reference Efficiency (no) 0.21%
Efficiency (1 W / 1 m)** 85.37 dB SPL
Effective Piston Area (Sd) 0.0345 sq m
DC Resistance (Re) 1.70 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.



Rek. Lådvolym: Sluten Låda 17.7L

10w3v3_sealed

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 17.7 L
External Width (W) 454 mm
External Height (H) 279 mm
External Depth (D) 229 mm
F3 48.3 Hz
Fc 55.3 Hz
Qtc 0.831

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6.5 mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Rek. Lådvolym: Portad Låda 35.4L

10w3v3_ported

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 35.4 L
External Width (W) 635 mm
External Height (H) 305 mm
External Depth (D) 318 mm
Internal Slot Port Width (SW) 32 mm
Internal Slot Port Height (SH) 267 mm
Internal Slot Port Length (SL) 629 mm
Port Extension Length (EL) 295 mm
Tuning Frequency (Fb) 32.0 Hz
F3 31.4 Hz

Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6.5 mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
