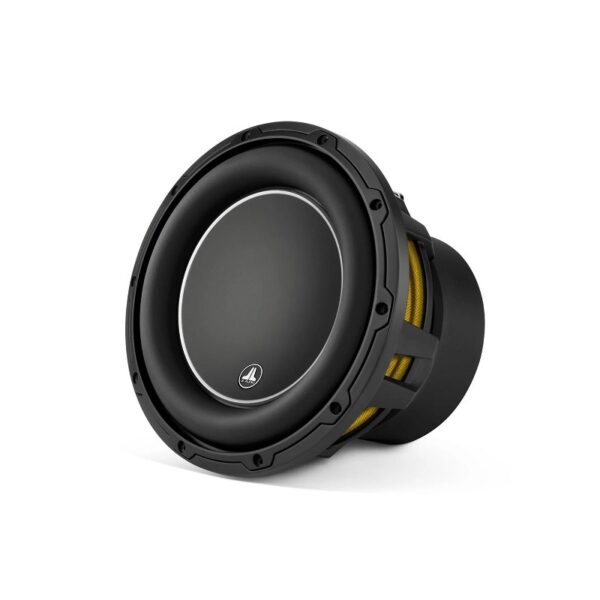

JL Audio 10W6v3-D4

SKU: 92140
2 i lager (5+ i UK lager)

7990 kr

  • Lådvolym 15.57 / 21.2 L
  • 200-600 WRMS
  • Dual 4Ω
2 i lager (5+ i UK lager)
Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.

036-379300

EAN/UPC: 699440921404
RRP/EUR+VAT: 799.99
Kategori:

Beskrivning

The sound quality reference in very compact enclosures” – JL Audio

W6v3 – JL Audio har sedan 1993 haft W6 som en gestalt för den optimala kombinationen av kompromisser som krävs för att skapa exceptionell bas i bilen från mycket små utrymmen. W6v3 är den tredje generationen av den hyllade stamtavlan, som representerar ett stort steg framåt i strävan mot perfektion.

W6v3 – Baselement delar viktiga banbrytande teknologier med sin syskon serie, flaggskeppet W7.
Med distorsionsnivåer långt under hörbarheten i hela frekvensomfånget, en innovativ kylstruktur som effektivt riktar luft runt talspolen ger optimerad effekthantering och hållbarheten även vid den tyngsta belastningen. Samt en rejäl gummiupphängning för ökad hållbarhet och en progressiv rullspindel med stor diameter för linjär följsamhet över hela basens slaglängd.
Konan är formsprutad, mineralfylld polypropen för maximal hållbarhet.

Båda W6v3-modellerna erbjuder en imponerande linjär XMAX på 19 mm (One way), tillsammans med det kraftfulla magnetiska systemet, optimerat genom DMA-teknik.
W6v3 serien besitter flertalet patenterande teknologier så som ”DMA Optimized” , ”Elevated Frame Cooling” , ”Engineered Lead Wire System” , ”FCAM” , ”Pole-Vent Airflow Control” och ”Terminal Jumper System”

Alla W6v3 erbjuder dubbla 4Ω talspolar som kan kopplas i serie för en 8Ω , eller parallellt för en 2Ω .

Dessa är helt enkelt de bästa JL Audio W6-orna någonsin… och det säger en hel del.

Ladda ner manual (PDF)

Effektspecifikation

10W6V3_Power

Kontinuerlig Effekttålighet (WRMS) 600 W
Rekommenderad förstärkareffekt 200 - 600 W
Impedans Dubbla 4 Ω
Fysiska Mått

10W6V3_size

Nominell Diameter 250 mm
Overall Diameter (A) 267 mm
Monterings Hål (B) 229 mm
Skruvhål Diameter (C) 250 mm
Magnet Ytter Diameter (D) 172 mm
Monteringsdjup (E) 175 mm
Min. Ventilations Avstånd 13 mm
Magnet Displacement 2.1 L
Net. Vikt 9.1 kg
Parametrar
Free Air Resonance (Fs) 30.12 Hz
Electrical “Q” (Qes) 0.543
Mechanical “Q” (Qms) 9.228
Total Speaker “Q” (Qts) 0.513
Equivalent Compliance (Vas) 23.25 L
One-Way Linear Excursion (Xmax)* 0.75 in / 19 mm
Reference Efficiency (no) 0.11%
Efficiency (1 W / 1 m)** 82.7 dB SPL
Effective Piston Area (Sd) 0.0318 sq m
DC Resistance (Re)*** 6.452 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.



Rek. Lådvolym: Sluten Låda 15.57

10W6V3_sealed

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 15.57 L
External Width (W) 318 mm
External Height (H) 318 mm
External Depth (D) 267 mm
F3 42.27 Hz
Fc 47.55 Hz
Qtc 0.8099

Download detailed sealed enclosure information

Enclosure Notes
* The W6v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located around the JL Audio badge at the rear of the speaker. A minimum distance of 13 mm is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
* When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Rek. Lådvolym: Portad Låda 21.2L

10W6V3_ported

Wall Thickness 19 mm
Front Baffle Thickness 19 mm
Volume (net int.) 21.2 L
External Width (W) 546 mm
External Height (H) 314 mm
External Depth (D) 282 mm
Internal Slot Port Width (SW) 35 mm
Internal Slot Port Height (SH) 275 mm
Internal Slot Port Length (SL) 772 mm
Port Extension Length (EL) 419 mm
Tuning Frequency (Fb) 39 Hz
F3 33 Hz

Download detailed ported enclosure information

Enclosure Notes
* The W6v3’s employ a pole vent to remove heat and pressure from the inside of the speaker. A minimum distance of 13 mm is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
* The enclosure recommendations listed are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
* When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
