JL Audio 6W3v3-4

SKU: 92145
5 i lager (5+ i UK lager)

2790 kr

  • Lådvolym 4.2 / 7.1 L
  • 50-150 WRMS
5 i lager (5+ i UK lager)
Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.

036-379300

EAN/UPC: 699440921459
RRP/EUR+VAT: 279,99
Kategori:

Beskrivning

Loaded” – JL Audio

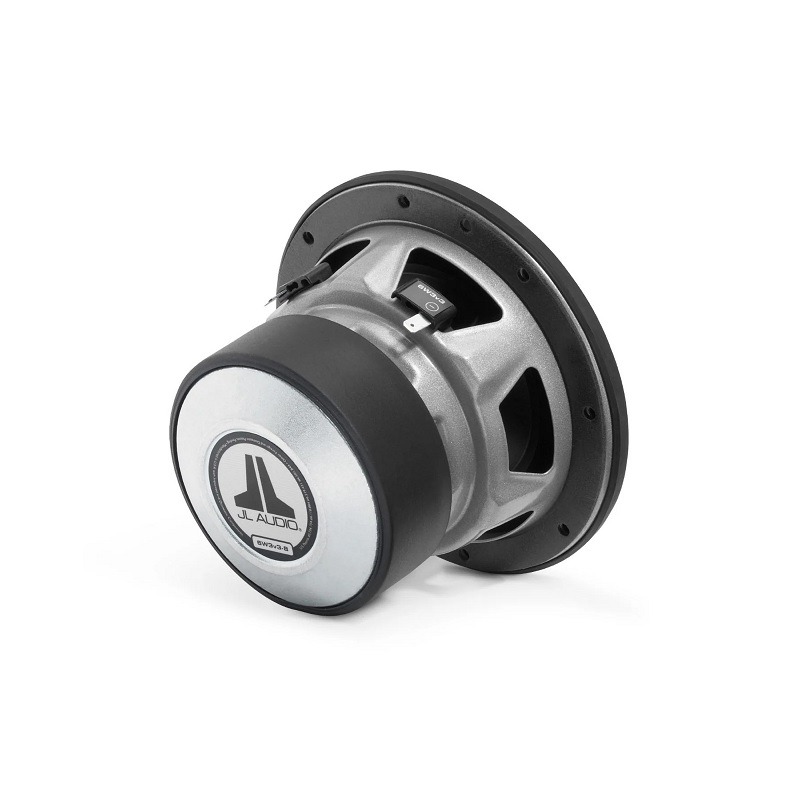

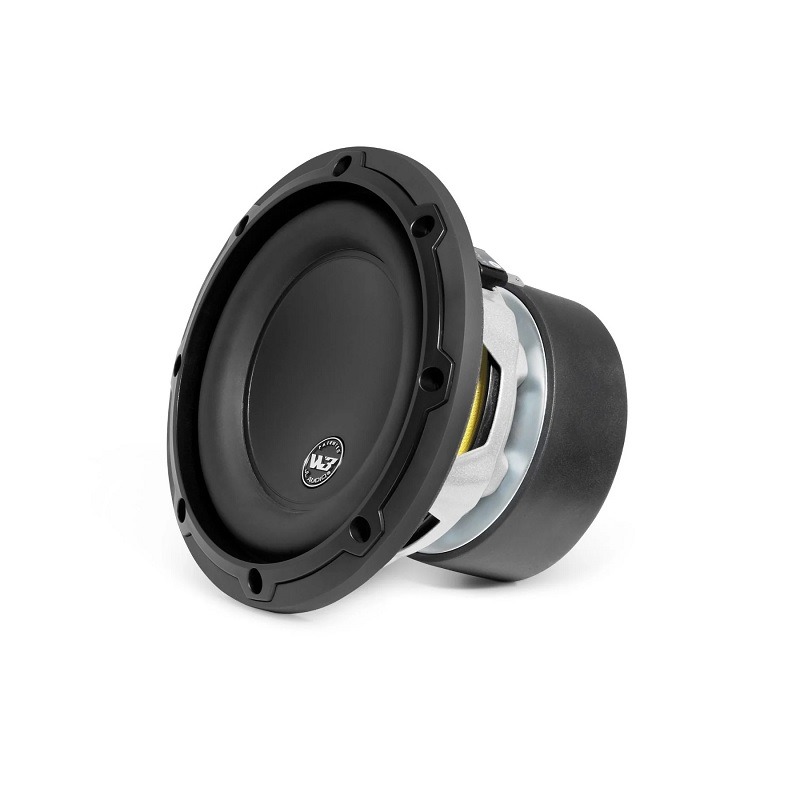

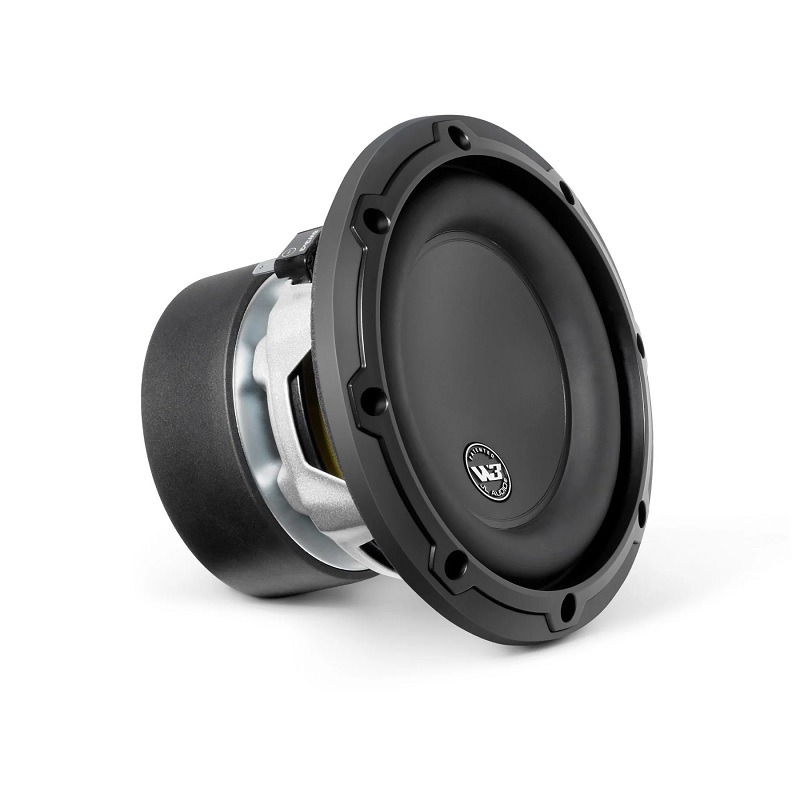

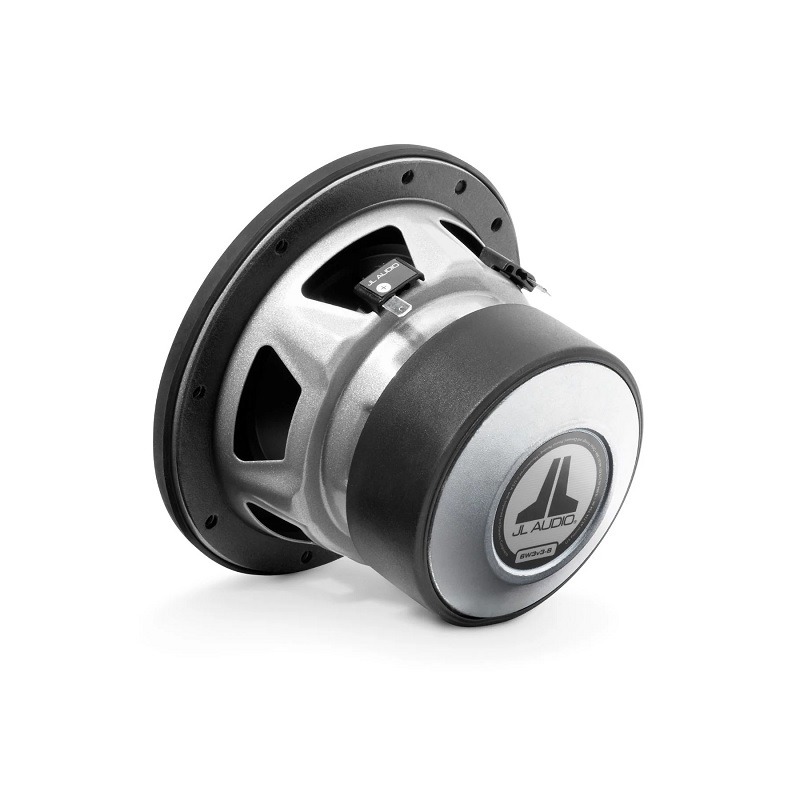

6.5″ baselement från JL Audio. Förvånande bra och fina djupbasegenskaper i riktigt små lådor.

6W3v3 – Med väl tilltagen effekttålighet för att få ännu bättre konkontroll. Utan att tveka gräver denna lilla bas i avgrunden och det med en kraft som får flertal större basar att låta klena!
Med en lång kontrollerad slaglängd är den designad för att passa i mycket små lådkonstruktioner.

W3 – Seriens basar använder sig av avancerad teknik som ursprungligen utvecklades för flaggskeppet W7-subwoofers. Ett DMA optimerat motorsystem tillåter långa, linjära slag, med minimal distorsion och ökad effekt.

6W3v3 – är utrustad med flertalet patenterade lösningar ”DMA Optimized”, ”Elevated Frame Cooling”, ”Engineered Lead-Wire System”, ”Insert Molded Sub-Assembly”, ”FCAM” och ”VRC”. Dessa teknologier gör W3 till de kraftfullaste och mest pålitliga generationen hittills.

Ladda ner manual (PDF)

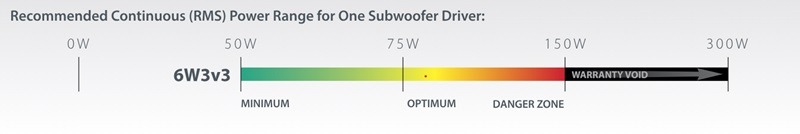

Effektspecifikation

6w3v3_4_effekt

Kontinuerlig Effekttålighet (WRMS) 150 W
Rekommenderad förstärkareffekt 50 - 150 W
Impedans 4 Ω
Fysiska Mått

6w3v3_4_size

Nominell Diameter 165 mm
Yttre Diameter (A) 174 mm
Monterings Hål (B) 140 mm
Skruvhål Diameter (C) 156 mm
Magnet Ytter Diameter (D) 108 mm
Monteringsdjup (E) 108 mm
Magnet Displacement 0.57 L
Net. Vikt

2.8 kg

Parametrar
Free Air Resonance (Fs) 41.80 Hz
Electrical “Q” (Qes) 0.533
Mechanical “Q” (Qms) 11.027
Total Speaker “Q” (Qts) 0.508
Equivalent Compliance (Vas) 5.13 L
One-Way Linear Excursion (Xmax)* 8.89 mm
Reference Efficiency (no) 0.07%
Efficiency (1 W / 1 m)** 80.49 dB SPL
Effective Piston Area (Sd) 0.0112 sq m
DC Resistance (Re) 3.476 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.

Rek. Lådvolym: Sluten Låda 4.2L

6w3v3_4_sealed

Wall Thickness 13 mm
Front Baffle Thickness 13 mm
Volume (net int.) 4.2 L
External Width (W) 216 mm
External Height (H) 216 mm
External Depth (D) 159 mm
F3 58.43 Hz
Fc 62.11 Hz
Qtc 0.7548

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of13 mm thick material. Do not use any material with a thickness of less than 13 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
* When using two subwoofers in a common enclosure simply double the required volume and, in the case of a ported enclosure, use two times the recommended port(s).
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

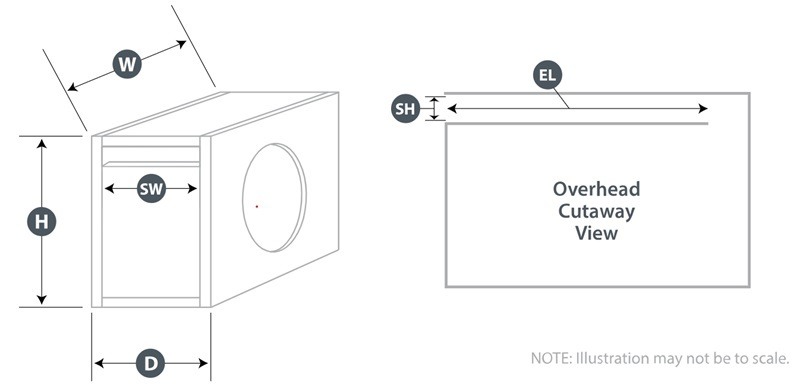

Rek. Lådvolym: Portad Låda 7.1L

6w3v3_4_ported

Wall Thickness 13 mm
Front Baffle Thickness 13 mm
Volume (net int.) 7.1 L
External Width (W) 368 mm
External Height (H) 257 mm
External Depth (D) 133 mm
Internal Slot Port Width (SW) 108 mm
Internal Slot Port Height (SH) 13 mm
Internal Slot Port Length (SL) 374 mm
Port Extension Length (EL) 330 mm
Tuning Frequency (Fb) 38 Hz
F3 34.92 Hz

Enclosure Notes
* The enclosure recommendations listed are external dimensions which assume the use of 13 mm thick material. Do not use any material with a thickness of less than 13 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.

Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
