9 Tum Fiat
Kenwood DMX80ASX-DU8
- 9″ Perfect Fit
- Fiat Ducato 2021+
- Trådlös CarPlay & Android Auto
- DSP
Om du har frågor eller funderingar kring våra produkter så är det bara till att kontakta oss för personlig support.
036-379300
Beskrivning

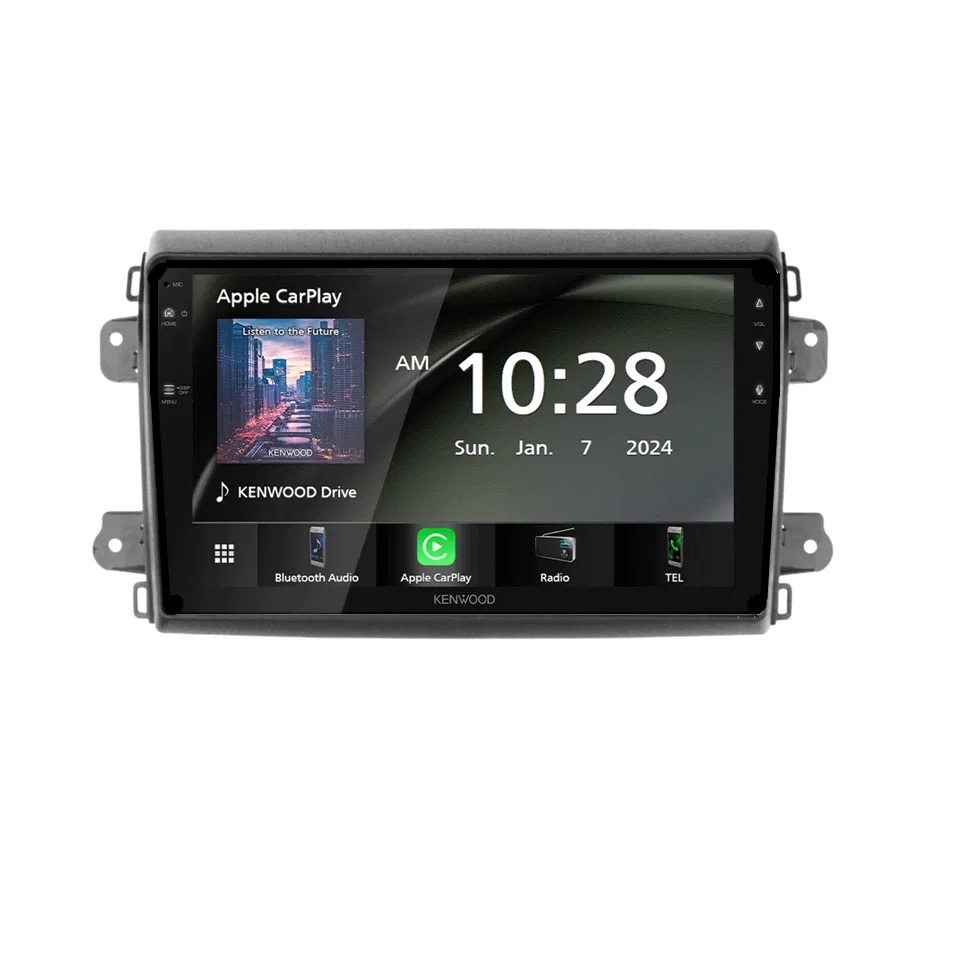

The Perfect Fit – 9.0” Fiat Ducato 2021+ (open dash, radioförbereddd)
En stilren multimedia maskin från Kenwood med Trådlös Apple CarPlay och AndroidAuto samt även Android Mirroring via USB, DAB+, Bluetooth, WiFi och mycket mycket mera!
9″ Clear resistive panel som gör det enkelt att navigera i menyerna.
2 par lågnivå utgångar på 2,5V + sub (mono), 13-bands EQ samt hög/lågpassfilter och tidskompensering för att kunna ställa in ljudet till högtalare och basar direkt i stereon exakt.
- Navigera via AndroidAuto/Carplay mm
- Röststyrning
- Spegla hela din telefon via Android Mirror
- Bluetooth (Handsfree + Streaming)
- AndroidAuto via Wifi och BT
- Apple Carplay via Wifi och BT
- Android Mirror via USB
- 9″ Touchskärm (Clear resistive)
- Kort chassie
- Max uteffekt: 50W x 4
- USB samt AUX/AV
- Förberedd för backkamera
- 3 kanal lågninvå (RCA) Fram + Bak + SUB (2,5 volt)
- 13 Bands EQ
- Delningsfilter HP/LP
- DTA Tidskomp
- DSP
Komplett med monteringssats, adaptrar samt rattstyrningsinterface mm.
Passar Fiat Ducato 2021 och nyare (OBS! Nya instrumenteringen) Open Dash!
| Key Features | 9.0 WSVGA Display with Capacitive Touch Panel |
| The Perfect Fit - Universal Shape Front Panel | |
| Wired & Wireless CarPlay® & Android Auto™ | |
| Wireless Mirroring, 2-Way Touch Control for iPhone & Android | |
| Built-in Bluetooth® Hands-free calling & Audio Streaming. | |
| High Current 2.1A Charging USB port. | |
| 2 Preouts 2.5V & Subwoofer Out (Mono) | |
| 13 Band EQ & Digital Time Alignment | |
| Rear View Camera Input with Parking Guidelines | |

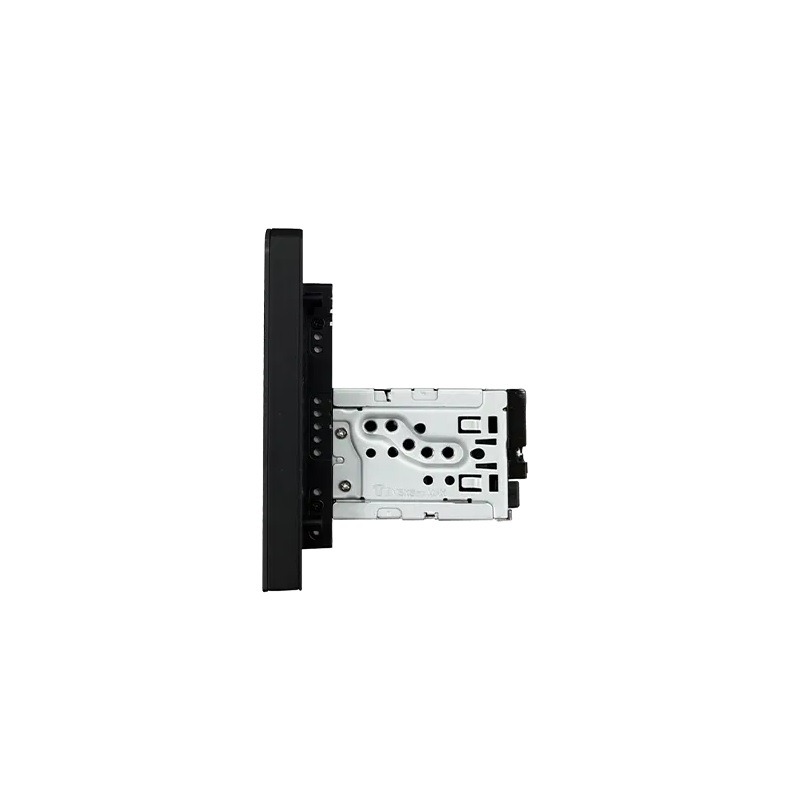

| L-Shape Short Chassis Design for easy installation |
| General Features | Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes | |
| Key Illumination | White colour | |
| Attenuator with Smooth Volume Return | Yes | |
| Touch Sensor Tone | Yes | |
| Optional IR remote controller | Yes, (KNA-RCDV331) | |
| Digital Clock (24H) | Yes | |
| Built-in Bluetooth | Yes | |
| Wifi built-in | Yes | |
| Made for iPhone | Yes | |
| Apple CarPlay – Connect Wirelessly or via USB | Yes | |
| Android Auto™ – Connect Wirelessly or via USB | Yes | |
| Wireless Mirroring for iPhone/Android | Yes | |
| Firmware upgreadable | Yes |
| Monitor Features | Screen Type | 9.0 WSVGA Display |
| Display Type | Glare | |
| Display Panel | Capacitive | |
| Display film | Anti Fingerprint | |
| High Resolution WSVGA Screen | 1024 x 600 pixel | |
| LCD backlight | White LED | |
| Display Mode | 3 Mode (Normal(default) / 16:9 / 4:3) | |
| Screen Adjustments | Brightness / Tint / Color / Contrast | |
| Dimmer function | Manual/Sync | |
| Dimmer Level | Auto/On/Off | |
| Visual Source Mode | Mirorring / CarPlay / Android Auto. | |
| Mechanism type | Fixed | |
| NTSC/PAL judge | Yes (Auto) | |
| Display Off Mode | Yes |
| Multimedia GUI Features | OSDC Type | Graphic |
| Menu text | 14 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Portuguese ► Arabic ► Hebrew ► Greek ► Polish ► Czech ► Hungarian |
|
| Demonstration Mode | Yes | |
| Top Menu Customize | Yes | |
| Opening Screen Type | standard | |
| Wallpaper customizable | 6 x presets + 2 x user set | |
| R-CAM interrupt | Yes | |
| R-CAM Parking Guide Lines | Yes, Built-in, customizable |
| Network & Wifi features | WiFi built-in | built-in |
| Frequency Range | 5 GHz (5,745– 5,825 GHz) | |
| Output Power | 5GHz / SISO: 13.78 dBm | |
| Wireless connection for Apple CarPlay | Yes | |
| Wireless connection for Android Auto | Yes | |
| Wireless connection for iPhone & Android Mirroring | With MirrorApp+ application |
| Tuner Features | FM Reception | Yes |
| AM (MW/LW) Reception | Yes | |
| Tuning mode | Auto1/Auto2/Manual | |
| Up/Down Seek/Scan | Yes | |
| Tuner Presets (FM/AM) | 36 Presets (24FM / 12AM) | |
| Automatic Memory Entry (AME) | Yes | |
| Radio Data System | Yes | |
| Radio Text Plus | Yes | |
| Traffic Information | Yes | |
| Local search | Yes | |
| AF Regional | Selectable: AF/AF Reg/OFF | |
| Enhanced Other Networks Function (EON) | Yes | |
| Program Type Function (PTY) | Yes |
| Bluetooth General Features | Hands Free Profile (HPF) | Ver. 1.8 |
| Audio Streaming (A2DP) | Yes, (SBC/AAC) | |
| Simple Secure Pairing (SSP) | Yes | |
| Phonebook Access Profile (PBAP) | Yes | |
| PBAP call history | Up to 20 entries of dialed, received and missed calls | |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V1.6 | |
| iPhone & Android automatic pairing via USB | Yes | |
| Private mode | Yes | |
| Interrupt call request | Yes | |
| Voice Control | Yes | |
| Noise Canceller | Yes | |
| Echo Canceller | Yes | |
| High-quality noise canceling microphone | built-in | |
| Bluetooth firmware upgradeable | Yes, Included in system updates |
| Playable Audio File | AAC (*.aac) files are playable | USB |
| MP3 files are playable | USB | |
| WMA (.wma) files are playable | USB | |
| WAV (.wav) files are playable | USB | |
| FLAC files are playable | USB |
| CE_Playable Video file | MPEG1/2 files are playable | USB |
| MPEG4 files are playable | USB | |
| WMV files are playable | USB | |
| H.264 files are playable | USB | |
| mkv files are playable | USB |
| USB Features | USB Type | 2.0 High speed |
| Yes | ||
| Drive Change | Yes | |
| File System | FAT16 / FAT32 / exFAT / NTFS | |
| Tag Information Display | Yes | |
| Album Art Display | Yes | |
| Repeat Play | Folder/File/All | |
| Random play | Folder | |
| Category search | Yes | |
| Link Search | Yes | |
| Last Position Memory / Resume | Yes | |
| Time code display | Yes | |
| USB ports maximum output current | 2.1A |
| iPhone Features | Connection via: | USB / Bluetooth |
| Plug & Play | Yes | |
| Tag Information Display | Yes | |
| Time Code Display | Yes | |
| List Access | Yes | |
| Album art support | Yes | |
| Random Play | Yes | |
| Repeat Play | Yes | |
| Skip | Yes | |
| iAP over Bluetooth | Yes | |
| Works with Apple CarPlay | Wired & Wireless |
| Android Phone Control | Connection via | USB / Bluetooth |
| Works with Android Auto | Wired & Wireless | |
| Android Open Accessory Protocol | Yes (For Android Auto) |
| Audio features | Max. Output Power | 4 x 50W |
| Primary Power Output | 4 x 22W | |
| Pre-out | 2 RCA : FRONT/REAR + SUB(mono) | |
| Pre-out Output Level | 2.5V | |
| Volume Offset | Yes | |
| Volume Type | DSP | |
| Built-in Amplifier Off | Yes | |
| Balance/Fader Control | Yes | |
| Beep On/Off | Yes |
| Multimedia DSP Features | Position Preset | 4 Presets |
| Position Preset | ||
| Graphic Equalizer | 13 bands | |
| G-EQ manual setting | Yes | |
| G-EQ adjustable level | Yes, +9db / -9dB | |
| Time Alignment | 0 ~ 610cm | |
| HPF Cut Off Frequency | 14 steps | |
| HPF Cut Slope Level | 4 steps | |
| Low Pass Filter (LPF) | Yes (Non-Fading) | |
| LPF Cut Off Frequency | 14 steps | |
| LPF Cut Slope Level | 4 steps | |
| X\\\'over | Yes | |
| Speaker Size Control | Yes | |
| Channel Level Control | Yes | |
| Loudness | Yes | |
| Tweeter volume | Yes | |
| Bass Boost | Yes | |
| Source Volulme Offset | source independent |

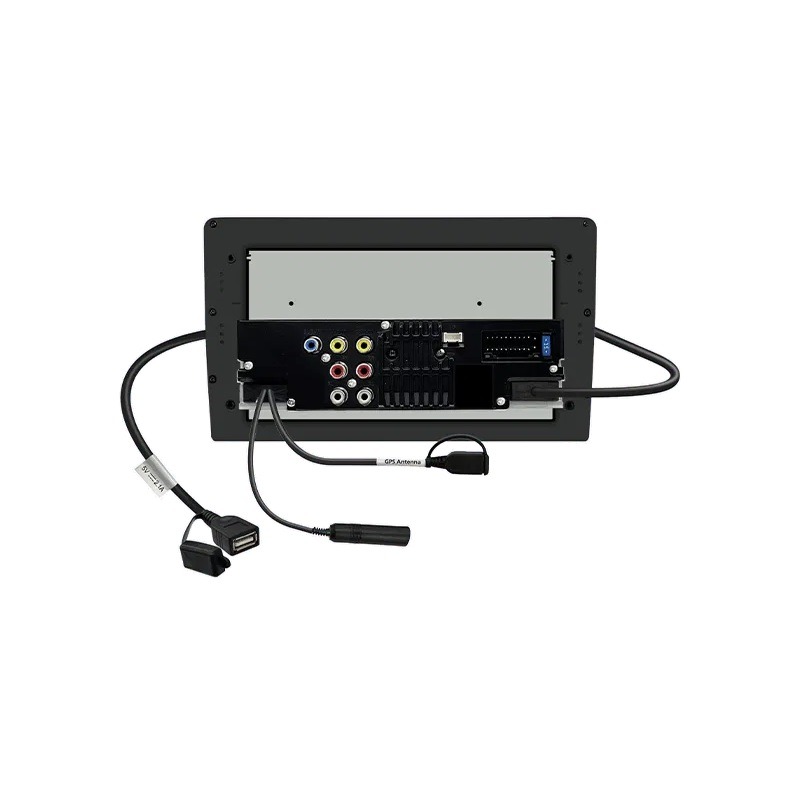

| Connectivity | DC-Cord | 22pin (New Type) to ISO |
| Reverse sensor wire | Yes | |
| Parking sensor (handbrake) wire | Yes | |
| Power Control (P.CON) wire | Yes | |
| Dimmer control wire | Yes | |
| Preout | 2 x RCA (Front/rear) + Sub (mono) | |
| Video Out | RCA x1 (Source: USB) | |
| Rear View Camera Input | Dedicated RCA Video-in | |
| GPS Aerial Input | GPS antenna included | |
| FM Antenna Input | JASO connector | |
| OEM Wired Remote Control ready | Yes, Optional interface needed | |
| Learning Steering Remote Function | Yes |
| Tuner Specifications | FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 1.8μV/75ohm (S/N 30dBf) | |
| FM Frequency Response | 30Hz ~ 14kHz (± 3dB) | |
| FM Signal to noise ratio (Mono) | 50dB | |
| FM Stereo Separation (1kHz) | 35dB | |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes | |
| MW Usable Sensitivity | 99μV |
| Bluetooth specifications | Technology | Bluetooth V5.0 |
| Frequency | 2.402 - 2.48 GHz | |
| Output power | +9 dBm (max), Power Class 1 | |
| Maximum range | Line of sight approx. 10 meter | |
| Handsfree profile (HFP) | Yes, V 1.8 | |
| Advanced audio distribution profile (A2DP) | Yes, V 1.3 | |
| Audio Codec | SBC/AAC | |
| Audio/Video remote control profile (AVRCP) | Yes, V1.6 | |
| Phonebook access profile (PBAP) | Yes, V1.2 |
| USB Specifications | USB Version compatibility | USB 2.0 High Speed |
| File System | FAT 16/32 / exFAT / NTFS | |
| Maximum Supply current | 2100mA | |
| D/A Converter | 24bit | |
| Video Decoder | MPEG1/2/4, WMV, H.264, mkv | |
| Audio Decoder | MP3, WMA, AAC, WAV, FLAC |
| Audio Specifications | Maximum Power | 50 W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22 W x 4 | |
| Output frequency band | 20 Hz ~ 20 kHz | |
| Preout Level | 2500 mV / 10 kOhm, | |
| Preout Impedance | ≤ 1400 Ohm | |
| Speaker Impedance | 4 Ohm ~ 8 Ohm |
| Video Specifications | Color System of External Video Input | NTSC/PAL |
| External Video Input Level (RCA) | 1 Vpp / 75 Ohm | |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
| Monitor Specifications | Screen size (Diagonal) | 9 Inches Wide |
| Display system | Transparent IPS LCD Panel | |
| Drive system | TFT Active Matrix System | |
| Number of Pixels | 1843200pixels (1024(H) x 600(V) x RGB) | |
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB Striped | |
| Back lighting | LED (Light Emitting Diode) |
| General Specifications | Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Dimensions (WxHxD) | 235 x 134 x 85.7mm | |
| Weight | 1330 gr. |
| Accessories | Release keys | 2 pieces |
| Escutcheon | Yes | |
| Installation Sleeve | Yes | |
| DC cord | 25 cm | |
| Screws (Parker-type) | Ø 3 x 10mm, 4 pieces | |
| Screws (M-type) | M5 x 8mm, 4 pieces | |
| GPS antenna | with 3 m cable | |
| GPS Antenna Ground Plane Mount (Adhesive Metal Pad) | Yes | |
| Adhesive tape pad | 1 piece(s) | |
| Multi-Language Instruction Manual Included |
Mer Info
| Vikt | 4 kg |
|---|---|
| Bilmärken |
