Beskrivning
”Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.” – JL Audio

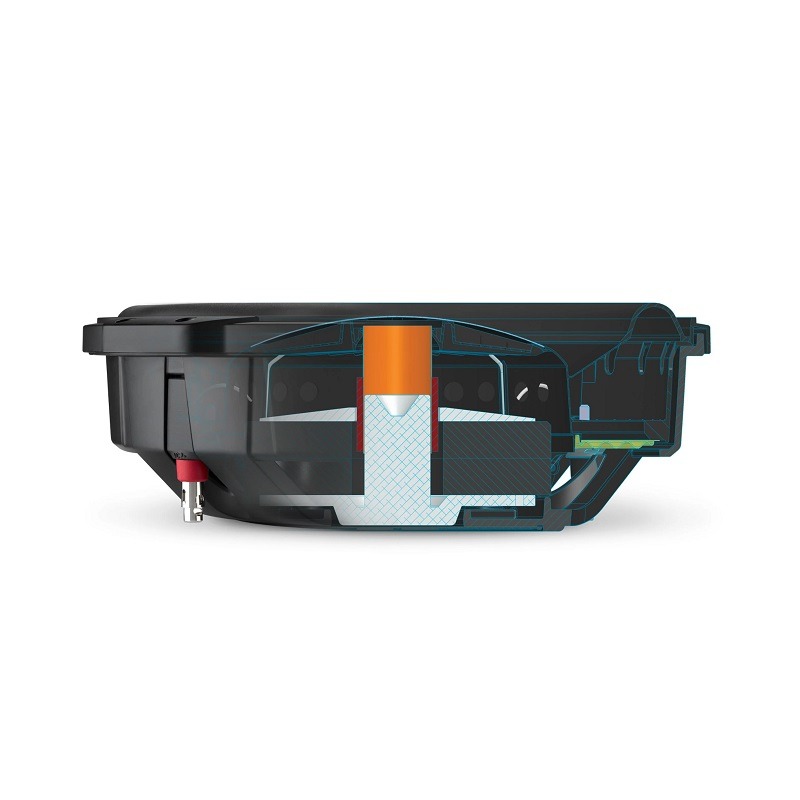

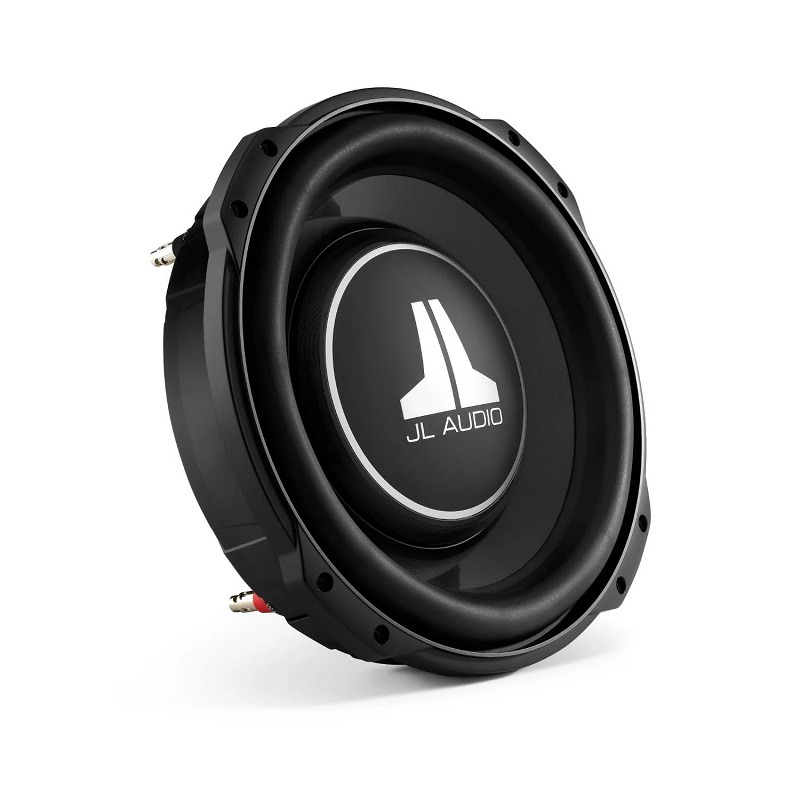

Med JL Audios patenterade ”thin-line” teknologi leverar TW3 en kraftfull kombination av lågt monteringsdjup och lång slaglängd samtidigt som den är optimal för små utrymmen (22.7L). Tillsammans med en speciell korg i gjuten aluminium gör att den fungerar i extremt trånga utrymmen, t.ex installationer under säten i lastbilar, 2-sitsiga bilar, och en mängd andra kreativa byggen som kräver en kompakt design med låg profil.
TW3 – Optimerad för små lådor, TW3 levererar all den rika, djupa och kontrollerade basen som du förväntar dig av en bas från JL Audio.
Galler: Ingår ej! Går att köpa till SGR-12TW3
Ladda ner manual (PDF): 12TW3_MANUAL
| Kontinuerlig Effekttålighet (WRMS) |
400 W |

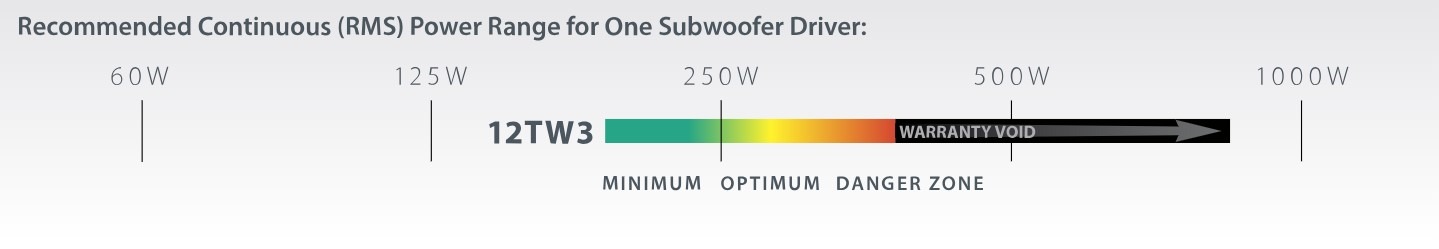

| Rekommenderad förstärkareffekt |
200 - 400 W |
| Impedans |
Dubbla 4 Ω |
| Nominell Diameter |
300 mm |

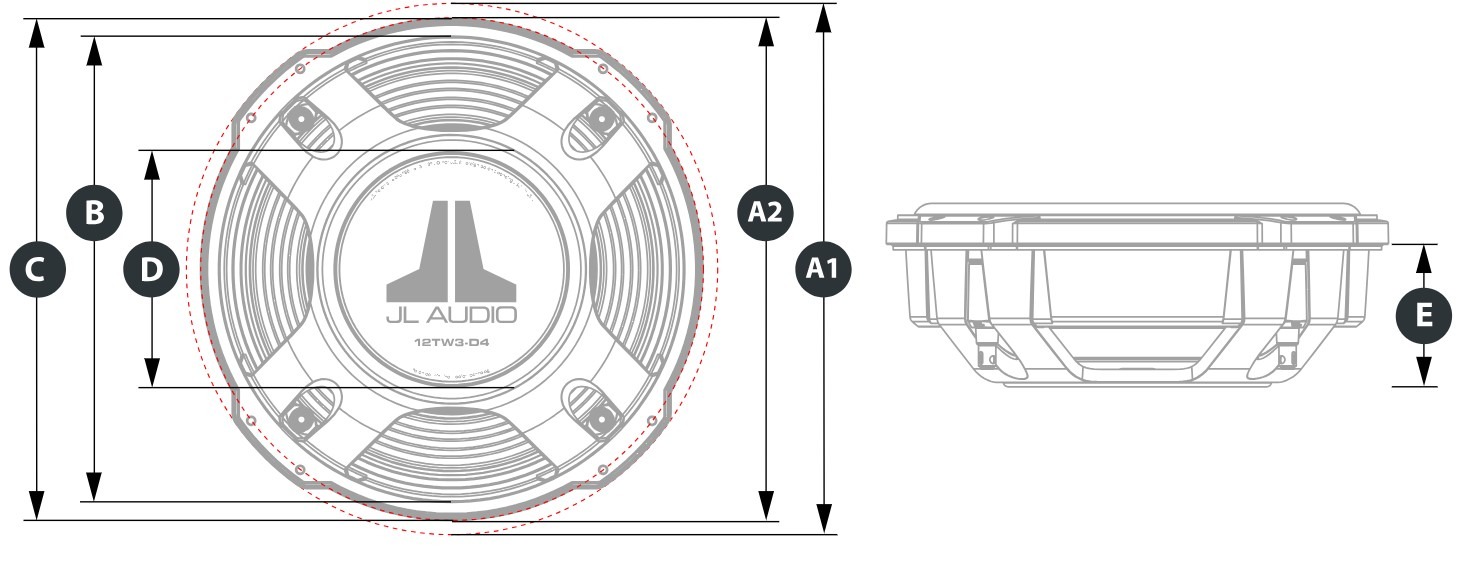

| Overall Diameter (A) |
A1: 335 mm
A2: 318 mm |
| Monterings Hål (B) |
295 mm |
| Skruvhål Diameter (C) |
318 mm |
| Magnet Yttre Diameter (D) |
156 mm |
| Monteringsdjup (E) |
89 mm |
| Magnet Displacement |
0.82 L |
| Net. Vikt |
6.8 kg |
| Free Air Resonance (Fs) |
26.46 Hz |
| Electrical “Q” (Qes) |
0.558 |
| Mechanical “Q” (Qms) |
10.766 |
| Total Speaker “Q” (Qts) |
0.531 |
| Equivalent Compliance (Vas) |
48.73 L |
| One-Way Linear Excursion (Xmax)* |
15.2 mm |
| Reference Efficiency (no) |
|
| Efficiency (1 W / 1 m)** |
84.11 dB SPL |
| Effective Piston Area (Sd) |
0.0539 sq m |
| DC Resistance (Re)*** |
9.280 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.
|

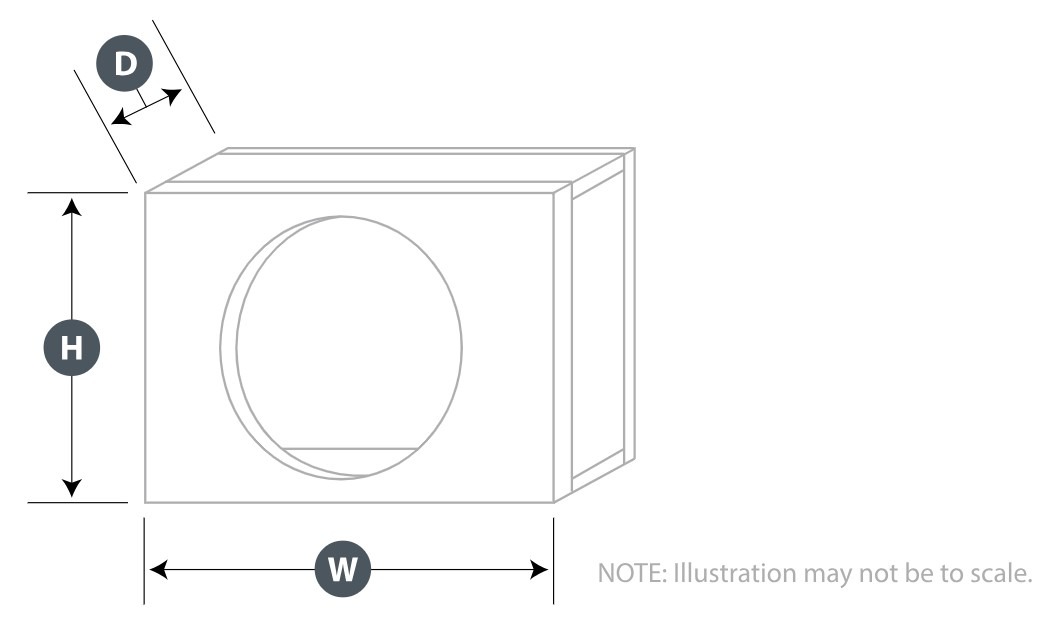

| Wall Thickness |
19 mm |
| Front Baffle Thickness |
19 mm |
| Volume (net int.) |
22.7 L |
| External Width (W) |
540 mm |
| External Height (H) |
406 mm |
| External Depth (D) |
165 mm |
| F3 |
37.99 Hz |
| Fc |
46.97 Hz |
| Qtc |
0.9426 |
|
Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 19 mm thick material. If you are using 16 mm thick material, subtract 6mm from each dimension. Do not use any material with a thickness of less than 16 mm as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.
Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
Enclosure Notes
* The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
* All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
* When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
* We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
* All specifications are subject to change without notice.
Safety Notice
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.
|

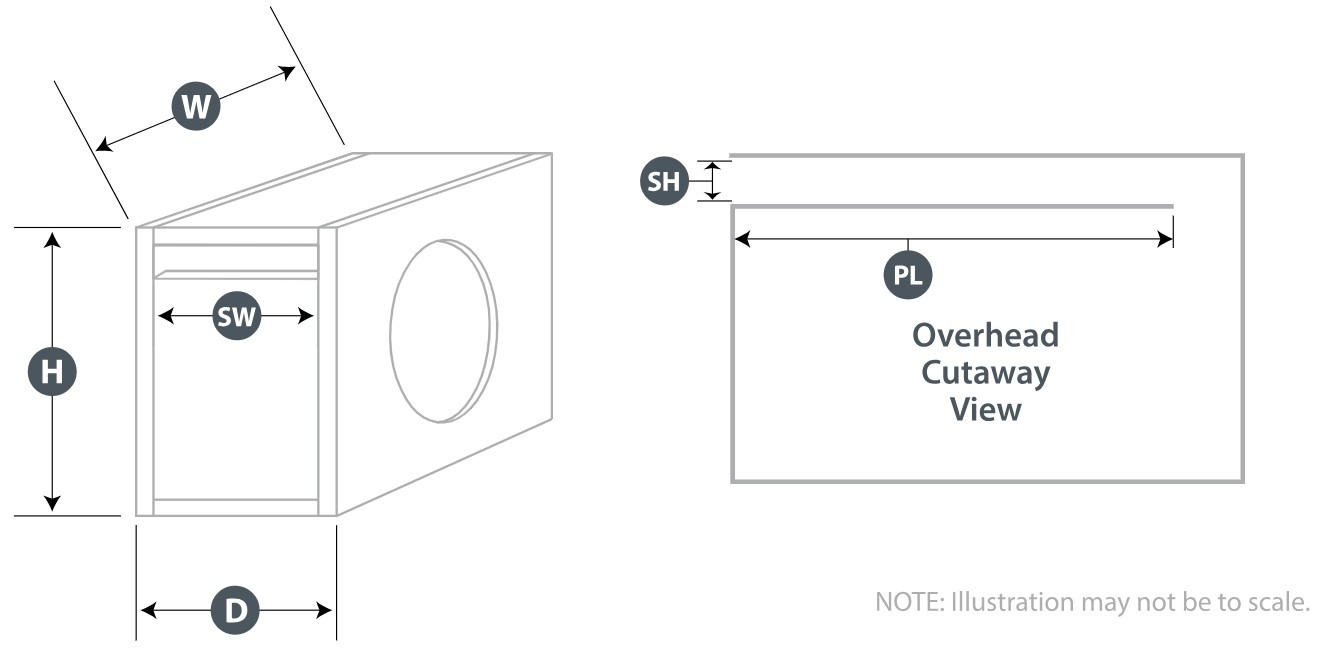

| Wall Thickness |
19 mm |
| Front Baffle Thickness |
19 mm |
| Volume (net int.) |
26.9 L |
| External Width (W) |
762 mm |
| External Height (H) |
422 mm |
| External Depth (D) |
165 mm |
| Internal Slot Port Width (SW) |
127 mm |
| Internal Slot Port Height (SH) |
64 mm |
| Internal Slot Port Length (SL) |
794 mm |
| Port Extension Length (PL) |
660 mm |
| Tuning Frequency (Fb) |
32.14 Hz |
| F3 |
32.52 Hz |
